Molex 150 waterproof plug connectors - 4, 6, 8, 12, 16 Pins for Harley Davidson, cars and motorcycles

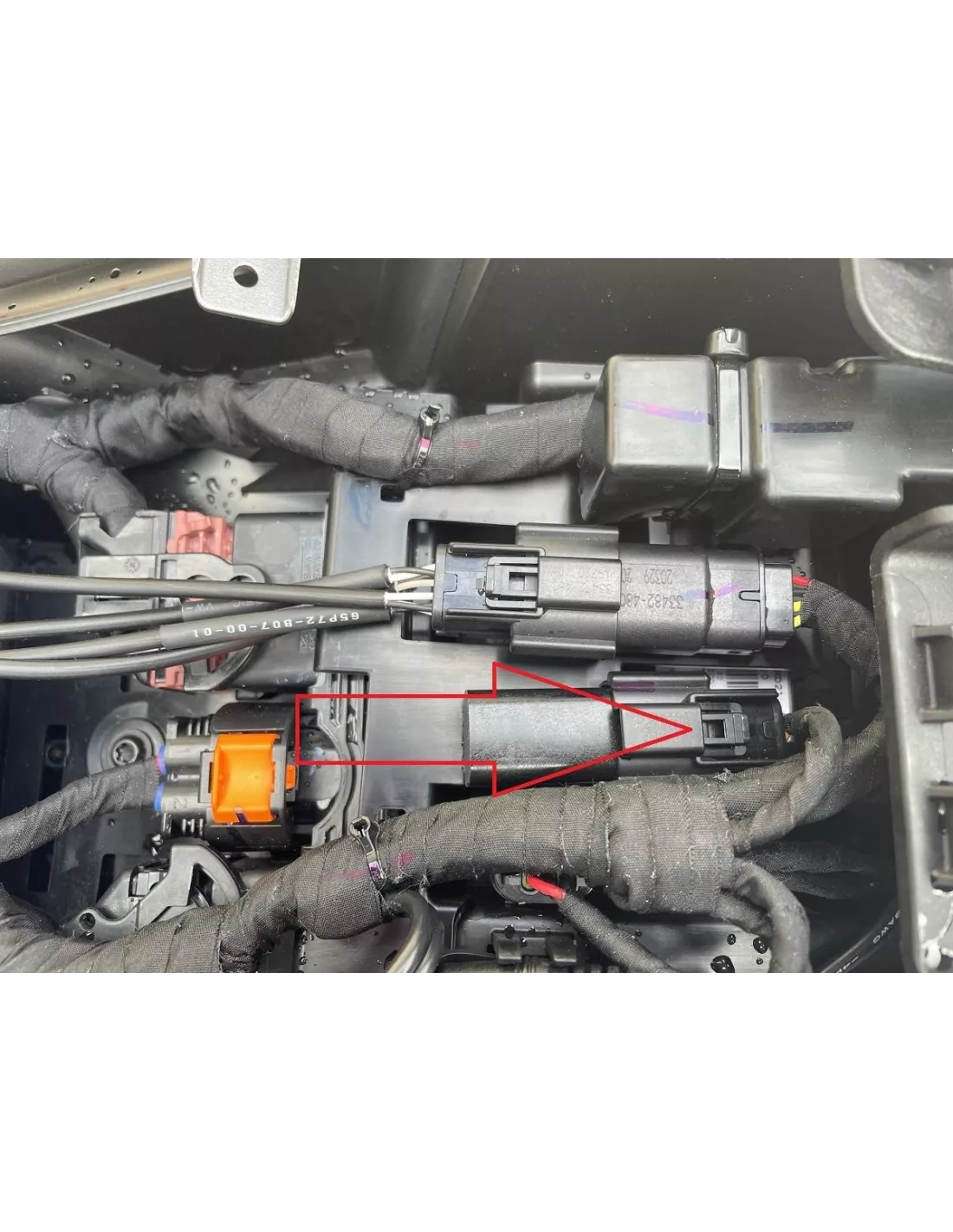

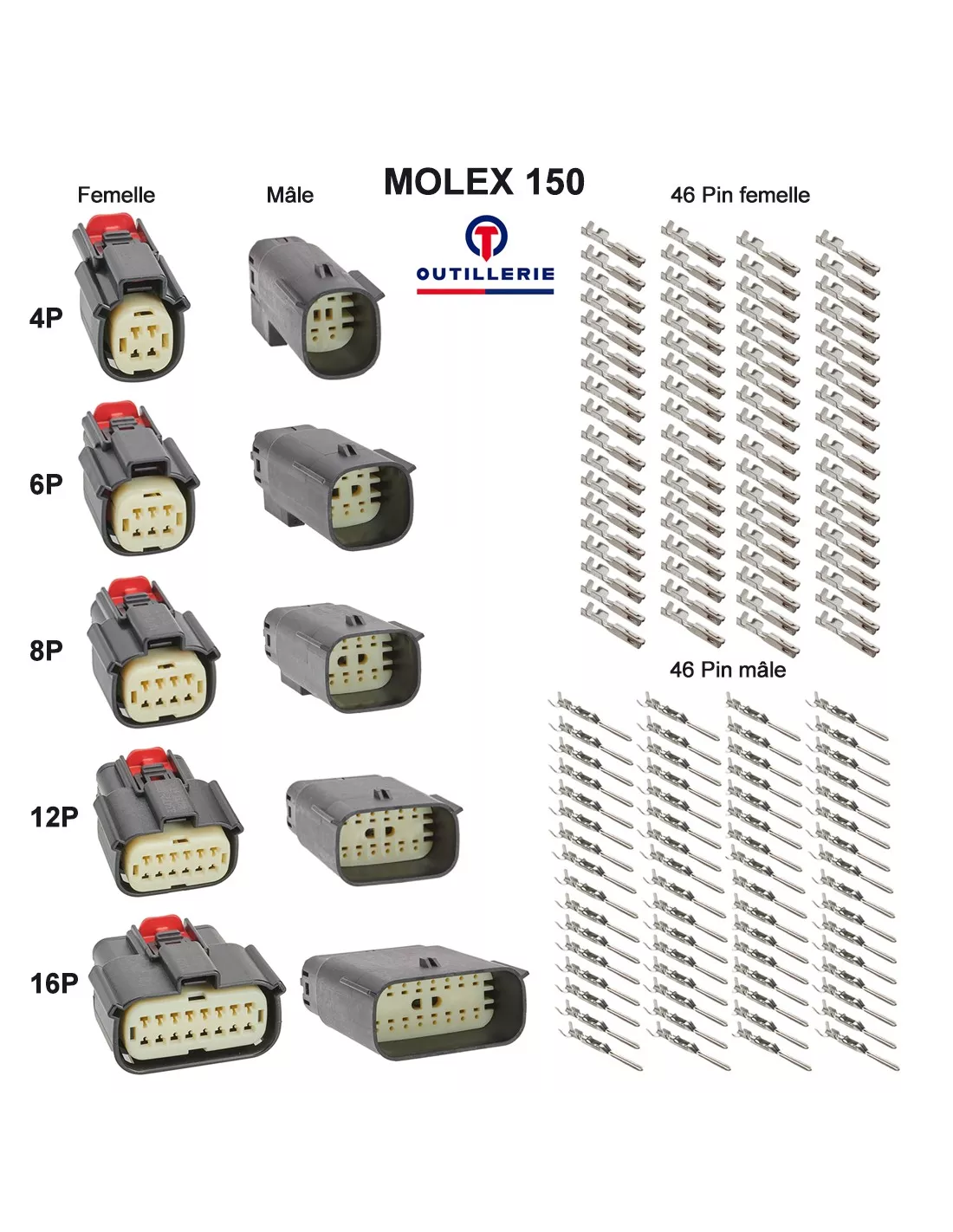

Here are the electrical and audio speaker connectors used on Harley Davidson motorcycles. The set includes 4-pin, 8-pin, 12-pin and 16-pin connector versions. 1 unit of each in male and female, plus crimp contacts in male and female. A definite saving compared with the price of original cables using the same Molex 150 connectors.

High-performance MX150 sealed blade and receptacle connectors for motorcycle and automotive applications, meeting USCAR-2 class 3 requirements. The fact that these connectors meet these requirements means they can be used in engine, high-vibration, under-hood and under-chassis environments at Class 3 temperatures.

These MX150 connectors feature a compact housing and are based on the 1.5 mm ISO blade terminal system. This terminal system offers low insertion force and high-performance connection for medium-power applications.

The connector seals are designed and tested to IEC IP6K7 and IP67K9K, and SAE USCAR-2 Rev 4. The fact that these connectors comply with these standards means that they exceed the sealing requirements of a true waterproof connector system tested under immersion in various liquids.

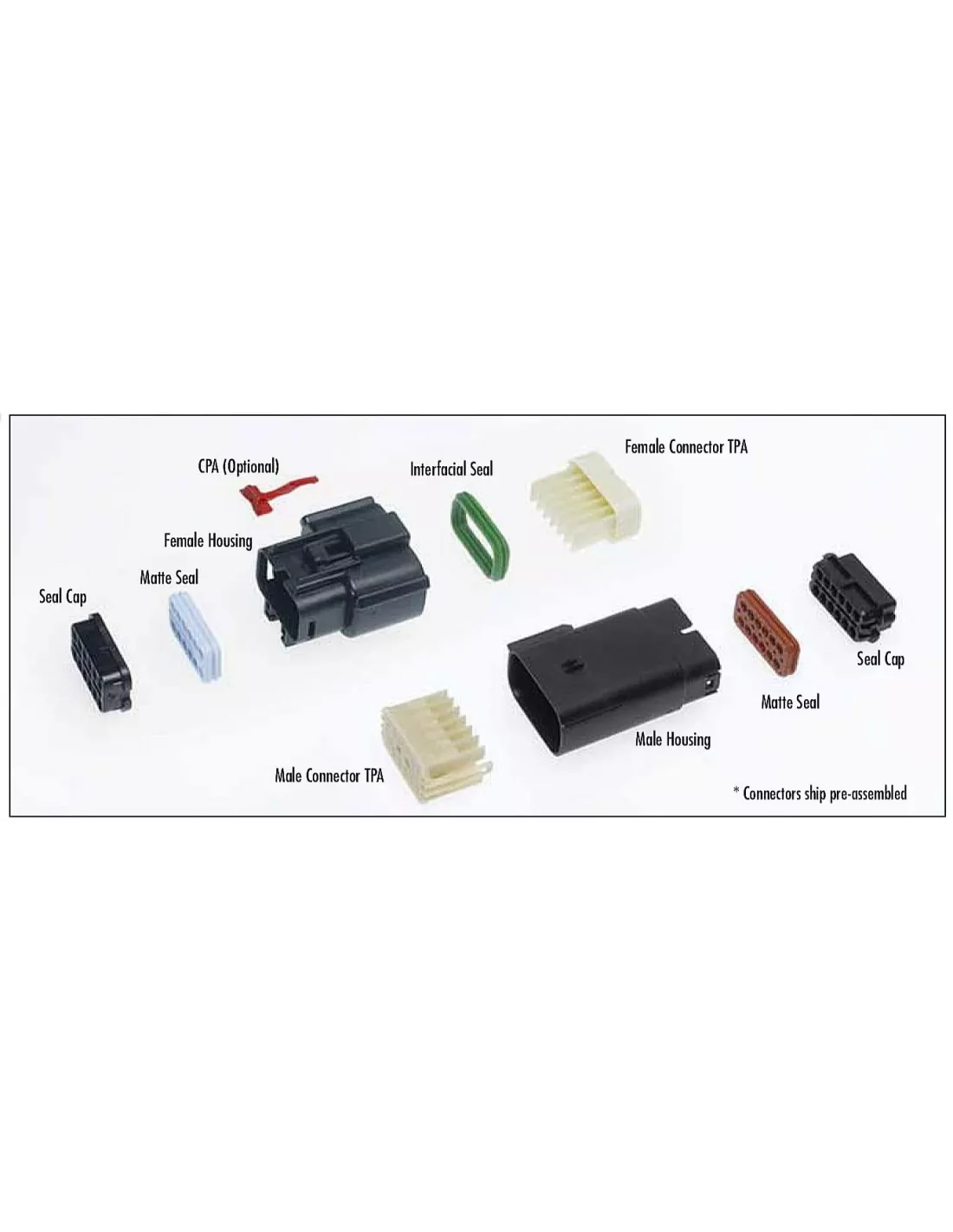

The mat seals on these connectors provide both waterproof protection and a grommet at the seal interface. Connector terminals are supplied separately and must be crimped and inserted into the connector.

The current rating of this connector is 22 A.
